उत्पाद विवरण
Place of Origin: China
ब्रांड नाम: LHTi
प्रमाणन: ISO9001:2015; TUV; SGS;BV
Model Number: Titanium Rod
भुगतान और शिपिंग शर्तें
Minimum Order Quantity: 30 kg
मूल्य: $20.00~$30.00/kg
Packaging Details: Plywood box with soft foam for additional protection,Standard Export package Titanium bar/rod will be packed in the plastic first and then use wooden case,wooden case or according to your order.
Delivery Time: 10-25 work days
Payment Terms: T/T, MoneyGram, L/C, Western Union, Paypal
Supply Ability: 300000 kg per month
Diameter: |
3mm-350mm |
Material: |
Pure titanium |
Surface: |
Bright,Polished,Pickling |
Condition: |
Annealed; M |
MOQ: |
30 kg |
Packing: |
Standard Export Packing |
Diameter: |
3mm-350mm |
Material: |
Pure titanium |
Surface: |
Bright,Polished,Pickling |
Condition: |
Annealed; M |
MOQ: |
30 kg |
Packing: |
Standard Export Packing |
Medical Titanium Alloys Titanium Round Rod
Material:Titanium alloy
Standard:GR1,GR2,GR3,GR5,GR7,GR12 TC4 TA2
Surface:Turned/ as After Forging
Density:4.51 G/cm3
Model number:ASTM B348,ASTM F136,ASTM F67,AMS4928
Titanium bars are divided into pure titanium bar and titanium alloy bars. For pure titanium bars we mainly provide Gr1, Gr2, Gr4 and other grades; we provide titanium alloy bars of Gr5, Gr7, Gr9, Gr11, Gr12, Gr16, Gr23 etc.
| Chemical requirements | |||||||||||
| N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
| Tensile requirements | |||||
| Grade | Tensile srength(min) | Yeild strength(mm) | Elongation(%) | ||
| KSI | MPa | Ksi | MPa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 12 | 70 | 438 | 50 | 345 | 18 |
| Item Name | Titanium bar/titanium rod |
| Standard | ASTM B348,ASTM F67,ASTM F136, AMS 4928 |
| Material | Gr1 Gr2 Gr3 Gr4 Gr5 |
| Diameter | 0.8~500mm |
| Length | 500~6000mm or according to customers' request |
| Product Status | Cold rolled(Y)~Hot rolled(R)~Annealed (M)~Solid Status |
| Shape | Round bar, square bar , hex bar |
| Feature |
1.Polished surface without any defects free from cracks no pittings |
| Certificate | ISO9001:2015, TUV, material test certificate acc EN10204.3.1 |

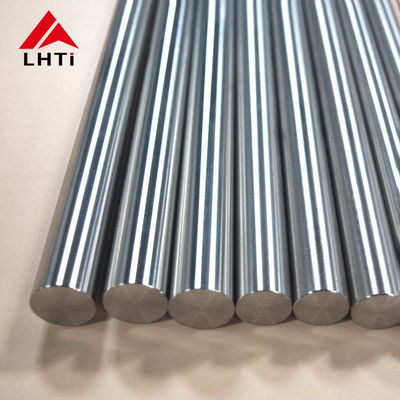

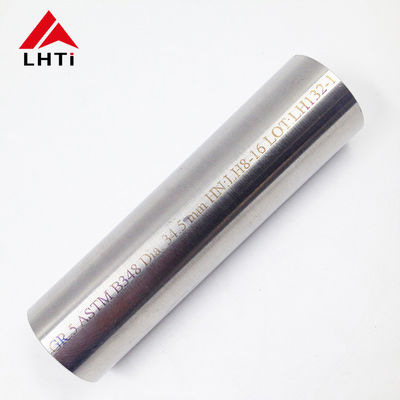

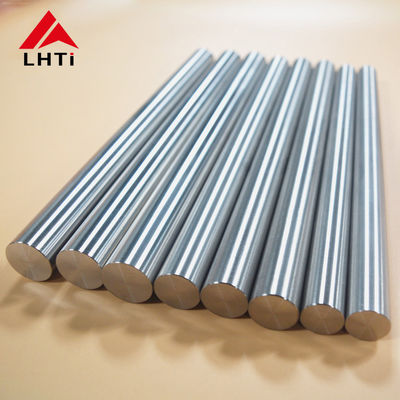

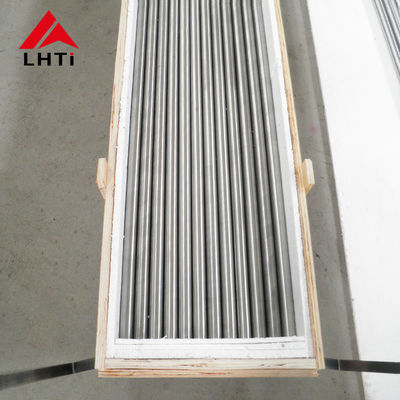

Product picture:
